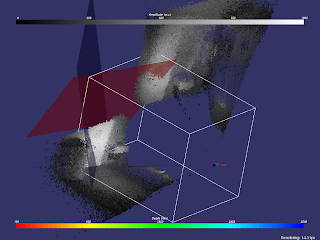

Considering the two points clouds below (rendered with VTK), the first step to align them is to rotate them correctly.


For this task, I use a simple RANSAC to find the largest plane in the point cloud. Then, having the plane normal vector nVec3, finding the rotation matrix mat that will align this plane with the Z-axis is 2 Eigen calls away :
Eigen::Vector3d nVecZ; nVecZ.UnitZ();
Eigen::Quaterniond qz; qz.setFromTwoVectors(nVec3, nVecZ);
Eigen::Matrix3d mat = qz.toRotationMatrix();
And here is the result for the dataset above:

That's 2 rotation DoF taken care of. Imposing the matched planes to have the same distance to origin takes care of one translation DoF. One rotation and 2 translations to go ;-)
